- Velocidad inalámbrica de 450 Mbps ideal para aplicaciones sensibles a la interrupción como la transmisión de video HD
- Tres antenas aumentan la robustez y la estabilidad inalámbricas
- Admite 3 modos: modos de enrutador, extensor de rango y punto de acceso
- Fácil encriptación de seguridad inalámbrica con solo presionar el botón WPS
- Control de ancho de banda: asigna sus dispositivos preferidos con más ancho de banda
-
WIRELESS Standards Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHzWiFi Speeds N450
2.4 GHz: 450 Mbps (802.11n)WiFi Range 2 Bedroom Houses

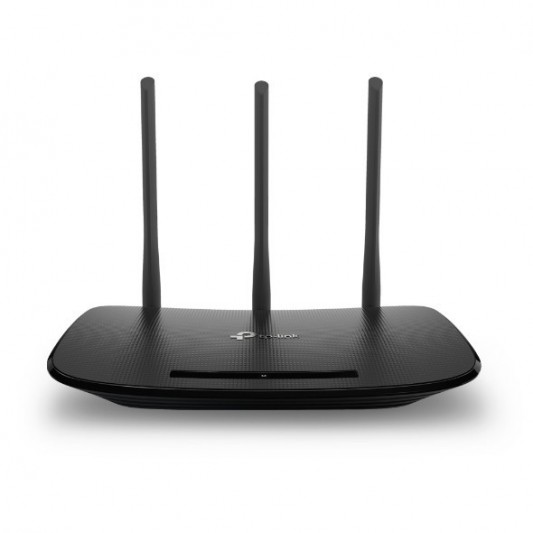

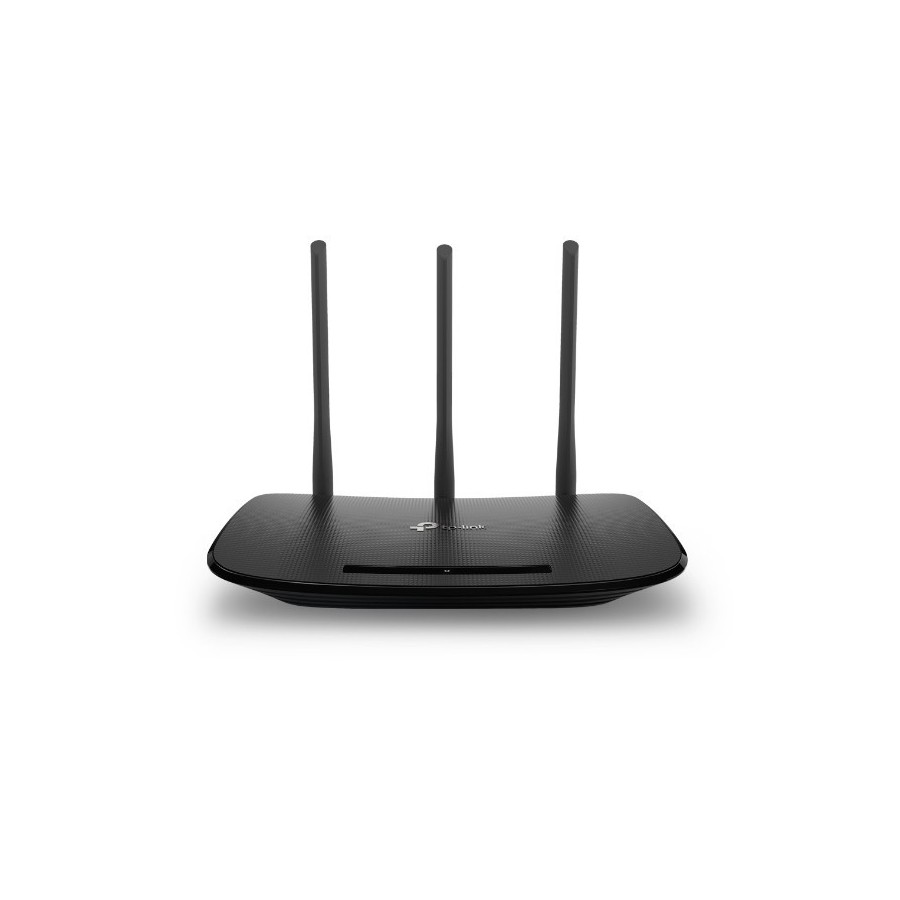

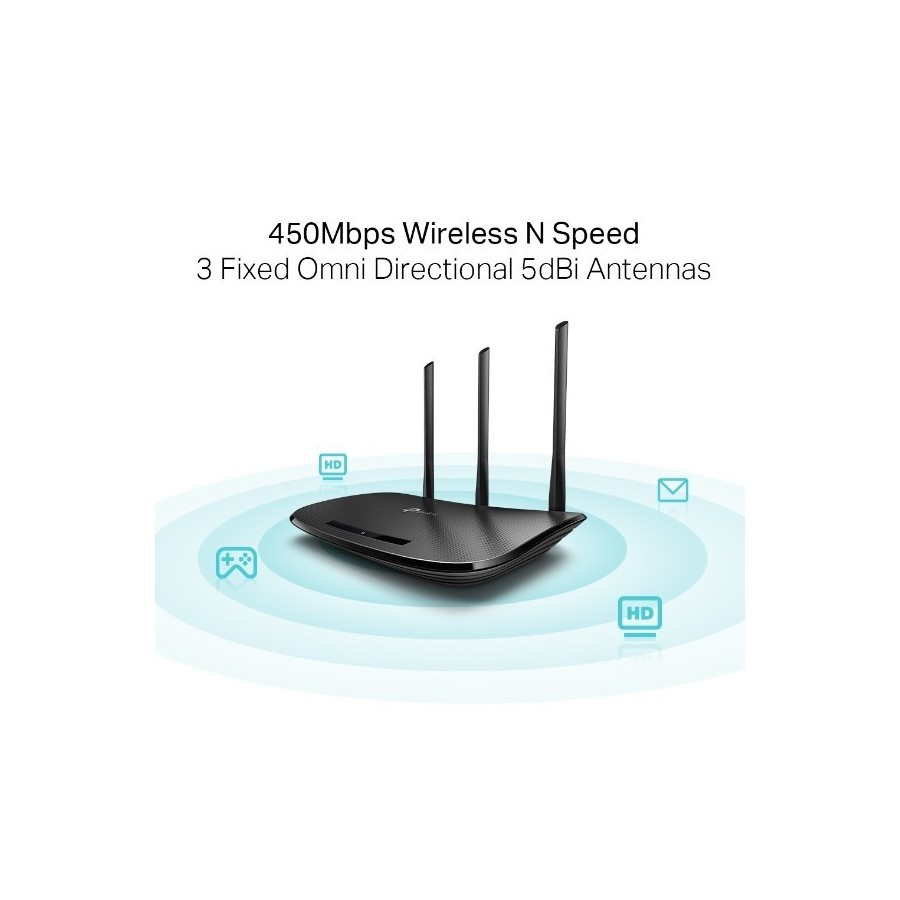

3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areasWiFi Capacity Legacy Working Modes Router Mode
Access Point Mode

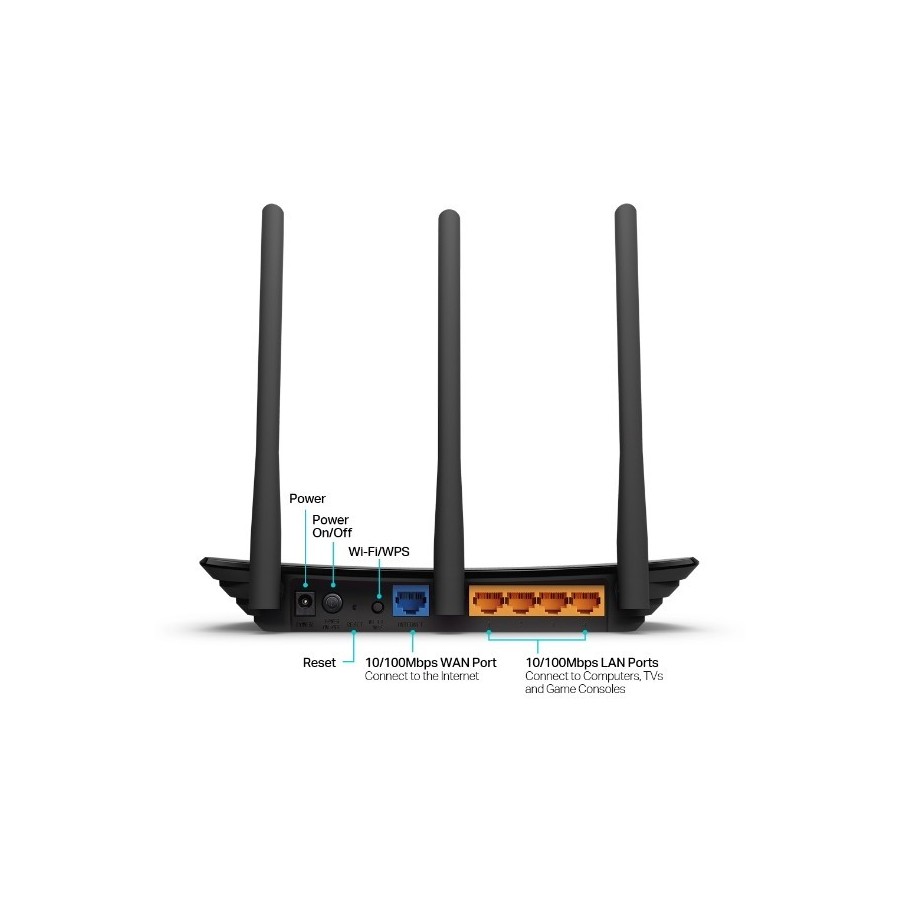

Range Extender ModeHARDWARE Processor Single-Core CPU Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN PortsBotones WPS/Wi-Fi Button
Power On/Off Button
Reset ButtonPower 9 V ⎓ 0.6 A SEGURIDAD WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer GatewayGuest Network 1× 2.4 GHz Guest Network SOFTWARE Protocols IPv4
IPv6Parental Controls URL Filtering
Time ControlsWAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TPQuality of Service QoS by Device NAT Forwarding VIrtual Server
Port Forwarding
Port Triggering
DMZ
UPnPIPTV IGMP Proxy
IGMP SnoopingDHCP Address Reservation
DHCP Client List
ServerDDNS NO-IP
Comex
DynDNSManagement Tether App
Webpage
Check Web Emulator>PHYSICAL Dimensions (W×D×H) 9.1 × 5.7 × 1.4 in
(230 × 144 × 35mm)Package Contents Wi-Fi Router TL-WR940N
Power Adapter
RJ45 Ethernet Cable
Quick Installation GuideOTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingTEST DATA WiFi Transmission Power CE:
<20dBm(2.4GHz)
FCC:
<30dBmWiFi Reception Sensitivity 450M: [email protected]% PER
216M: [email protected]% PER
130M: [email protected]% PER
54M: [email protected]% PER
11M: [email protected]% PER
6M: [email protected]% PER
1M: [email protected]% PER
